Unbonded PC Strand Post Tension Anchor 12.7mm Monostrand Anchor 1860Mpa Capacity

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC717
Certification:	ISO9001,CE,SGS
Model Number:	717

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs monthly

Contact Now

Detailed Product Description

Material:	Cast Iron	Application:	For PC Strand
Capacity:	1860Mpa	Color:	Galvanized/Black/Yellow/Colored
Diameter:	12.7 Etc.	Sample:	Available
High Light:	post tension accessories , prestressed anchorage , post tensioning system

Unbonded PC Strand 12.7mm Monostrand Anchor Post-Tensioning Mono Anchor Casting

Description

We offer a complete range of bar anchor castings for unbonded post-tensioning applications.

Bare anchor castings are available for 0.5” and 0.6” strand. Special order anchor castings can be

manufactured to your specifications.

Product Show

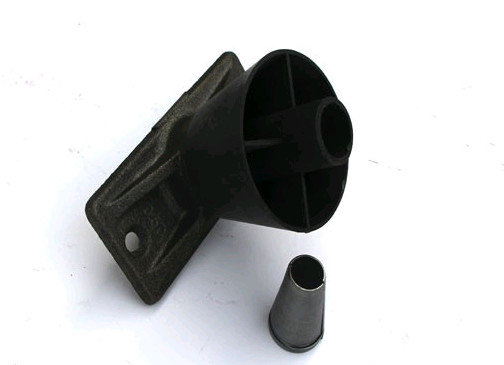

Unbonded PC Strand Post Tension Anchor 12.7mm Monostrand Anchor 1860Mpa Capacity 0

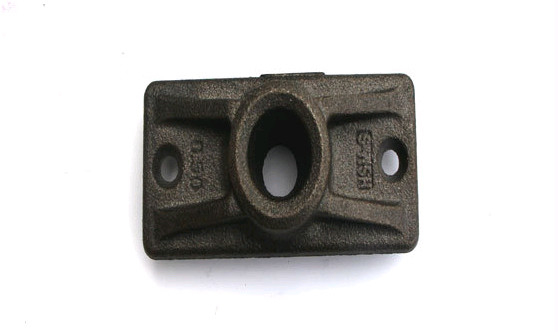

Unbonded PC Strand Post Tension Anchor 12.7mm Monostrand Anchor 1860Mpa Capacity 1

Strand	A	B	C	D	E	Weight
mm	mm	mm	mm	mm	mm	kg
12.7	127	57.1	33	50.8	63.5	0.48
15.2	148	76	41	50.8	82.6	0.93

The characteristics of mono-strand anchor are as the following

It is adaptable for stand with diameters of 12.5mm, 12.7mm 12.9mm, 15.2mm, 15.24mm, 15.7mm with

various strength from 1570Mpa to 2000Mpa.
Good in terms of self-anchoring and easy operation;
High anchoring efficiency factor, stable and reliable;
Be capable of repetitive stretching and strong in terms of anti-interference capability.
