Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor

Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor

  • Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor
  • Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor
  • Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor
  • Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor
Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor
Product Details:
Place of Origin: Mainland China
Brand Name: NC541
Certification: ISO9001,CE,SGS
Model Number: 541
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs monthly
Contact Now
Detailed Product Description
Material: QT450 Application: For PC Strand
Color: Galvanized/Black/Yellow/Colored Wedge Type: 2 Pcs Or 3 Pcs
Capacity: 1860Mpa Sample: Available
High Light:

post tension accessories

,

prestressed anchorage

,

post tensioning system

Prestressed Concrete Unbonded PC Strand Cast Iron Monostrand Integration Anchor



Products Details



Product Name
Prestressed Concrete Monostrand Anchor
Material
Cast Iron
Color
Galvanized / Black / Yellow / Colored
Certification
ISO,BV,ISO9001,CHINA MINING SAFETY CERT

Wedge Type

2 PCs or 3 PCs
Brand
NC
Place Of Origin
Mainland China
Application
Unbonded PC Strand



Features



It is adaptable for stand with diameters of 12.5mm, 12.7mm 12.9mm, 15.2mm, 15.24mm, 15.7mm with various

strength from 1570Mpa to 2000Mpa.
Good in terms of self-anchoring and easy operation;
High anchoring efficiency factor, stable and reliable;
Be capable of repetitive stretching and strong in terms of anti-interference capability.



Product Show

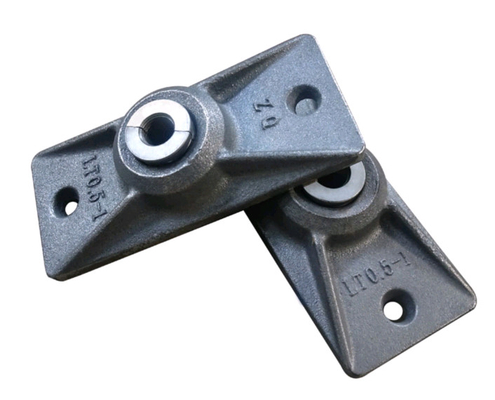

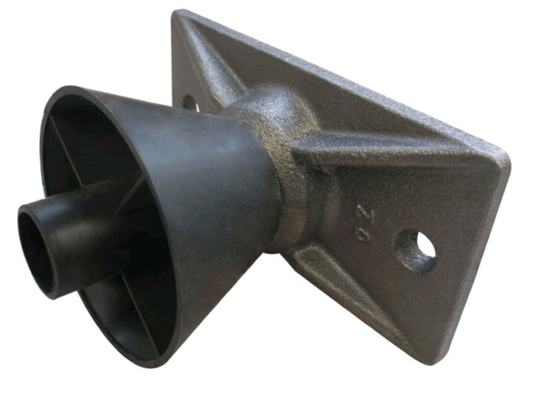

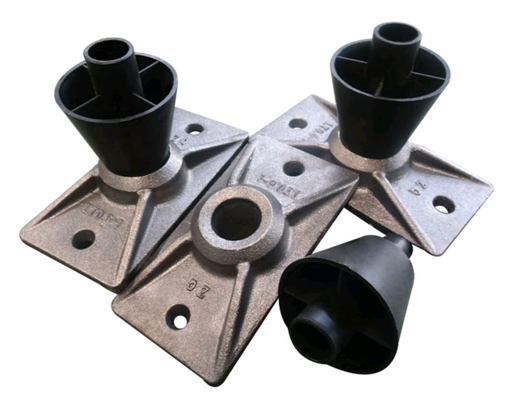

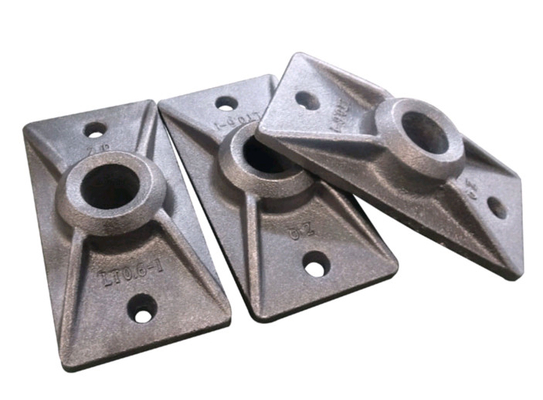

Unbonded PC Strand Post Tensioning Concrete Cast Iron Integration Anchor 0

Technical Data of Mono Anchorage
Strand A B C D E Weight
mm mm mm mm mm mm kg
12.7 127 57.1 33 50.8 63.5 0.48
15.2 148 76 41 50.8 82.6 0.93



FAQ



Q: Can the customers customize the design sketch?
A:Sure, welcome!

Q: Why we are worth trusting?
A:You are warmly welcome to visit our factory, and our working process.
Q:Is your quality guaranteed?
A: We have CCPC certificates ,and all our products must pass the quality inspection process before shipment.
