Place of Origin: | Mainland China |
Brand Name: | NC565 |
Certification: | ISO9001,CE,SGS |
Model Number: | 565 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $0.58 |
Packaging Details: | Plywood |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000 pcs monthly |
Materials: | 20CrMnTi | Type: | 2 Pcs Or 3pcs |
---|---|---|---|
Tensile Strength: | 1860Mpa | Yield Strength: | 1675MPa |
Hardness: | 58~63 HRC | OEM: | Available |
High Light: | post tension accessories,prestressed anchorage,post tensioning system |

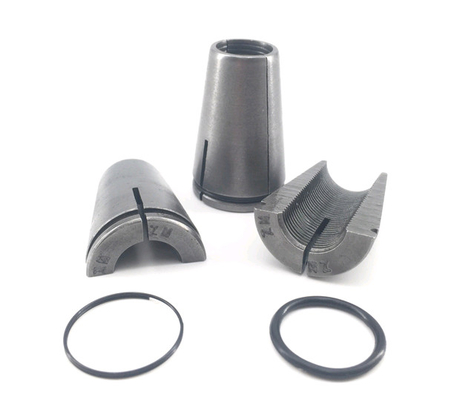

Concrete Anchorage Post Tension Wedge for 12.7mm Dia PC Strand
Specification
Production Process
|
Forging
|
Type
|
two or three parts
|
material
|
20CrMnTi
|
Inspection
|
Flaw detection,Deoxidation
|
Surface hardness
|
HRA79-84
|
Core Hardness
|
HR38-46
|
Carbonitriding Layer Depth |
0.35-0.6mm/0.6-0.8mm
|
Metallographic Analysis
|
Carbonitride, Tempered,Retained Austenite
|
Description
Improve the metallographic structure to increase the strength,and after the machining, we will do inspection of flaw detection and deoxidation, in order to guarantee quality

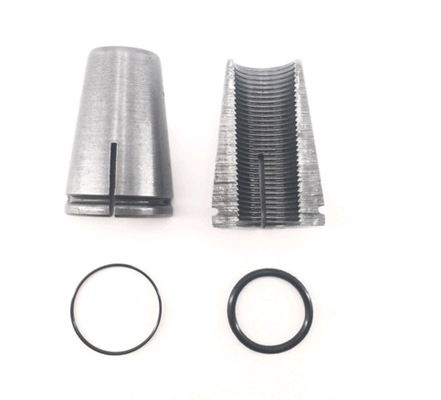

Post Tensioning wedges
Teeth Thread can produce base on your drawing or sample.
Its mainly used for post-tensioned construction in prestressed concrete structures and components.
wedge model |
using for pc stand size |
M13 | 12.7mm,12.5mm & 12.9mm |
M15 | 15.2mm or 15.24mm,15.7mm |
M18 | 17.8mm |
M22 | 21.6mm or 21.8mm |
Production Process
Our Service
Years of experience invested in designing and production of pre-tensioned structures imply flawless organisational skills and timely delivery of goods and materials. All our equipment is regularly maintained and calibrated in order to ensure consistent and permanent quality.
We provide long time aftersale guarantee for customer .we can produce goods according to customers design.
