Home ProductsStainless Steel Casting

Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider

Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider

  • Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider
  • Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider
  • Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider
Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC331
Certification: ISO9001,SGS
Model Number: 331
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Customized
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Part Name: Two Arm Spiders Material: Stainless Steel
Usage: Building Curtain Wall Mounted: Glazed Curtain Wall
Surface: Brushed/Polished Arms: 1arm / 2 Arms / 3 Arms/4arms
Size: 200/250mm
High Light:

stainless steel investment casting

,

stainless steel precision casting

Curtain Wall Spider 180 Degree Two-arms Spider Glass Hardware Fitting

Description

Glass curtain wall spider fitting supplier. Our own 4 arms spider , 3 arms spider ,
180 angle 2 arms spider , 90 angle 2 arms spider , short single spider, long single spiger,
different thickness and sizes glass routel.

Specification



Material Stainless Steel (304 and 316)
Finish Mirror or satin
Type 100,120,150,160,200,220,250 etc
Arm 1/ 2/3/4 arms
Application Suitable for glass curtain wall or handrail (glass thickness 6-25mm)

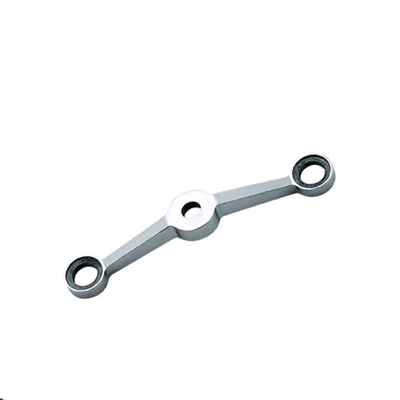

Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider 0

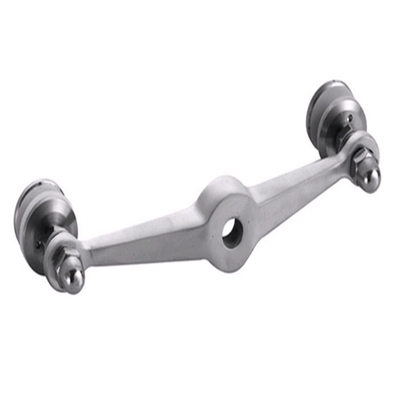

Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider 1
Material Specification



MATERIAL TYPE CHEMICAL COMPOSITION
USA ASTM A959-09
ASTM
EUROPE
10088-1:2005
C Si Mn P S Ni Cr Mo Cu Others
(%) (%) (%) (%) (%) (%) (%) (%) (%) (%)
201 1.4372 ≤ 0.15 ≤ 1.00 5.50-7.50 ≤ 0.06 ≤ 0.03 3.50-5.50 16.00-18.00     N≤0.25
304 1.4301 ≤ 0.08 ≤ 1.00 ≤ 2.00 ≤ 0.045 ≤ 0.03 8.00-10.00 18.00-20.00
304L 1.4306 ≤ 0.03 ≤ 1.00 ≤ 2.00 ≤ 0.045 ≤ 0.03 8.00-10.00 18.00-20.00
316 1.4401 ≤ 0.08 ≤ 1.00 ≤ 2.00 ≤ 0.045 ≤ 0.03 10.00-14.00 16.00-18.00 2.00-3.00
316L 1.4404 ≤ 0.03 ≤ 1.00 ≤ 2.00 ≤ 0.045 ≤ 0.03 10.00-14.00 16.00-18.00 2.00-3.00



Other Products

Glass Hardware Fitting Lost Wax Casting Stainless Steel 180 Degree Two Arms Spider 2

Our Service

1. To provide small orders but more varieties of personalized production services;
2. To provide the appropriate technical support based on the customers needs;
3. To recommend a reasonable processing technology based on the customers’ demand and products’ features,.
4. To ensure the comprehensive competitiveness of customer products.Our company philosophy is Honesty, Gratitude ,
Duty, Responsibility, Courtesy, Win. We would like grow up with every customer according this philosophy.

Quality Control

(1) Customization: Our engineering designers will use 3D to plot the size and characteristics of the sample,
plot the AUTOCAD and 3D model, send it to the customer for confirmation, and start the production of the mold or product.
(2) To customize the plans: We receive drawings from our customers to check if all tolerances and features are satisfied.
If possible, we will start production and processing of molds and products.In order to meet the needs of customers,
we have corresponding production and processing equipment and testing methods.
