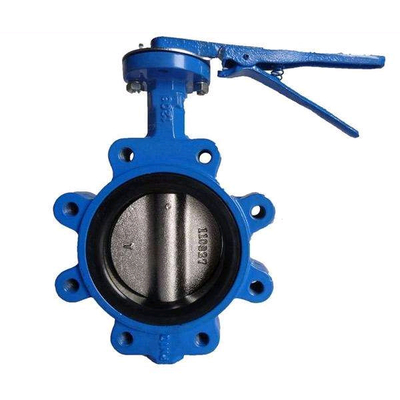

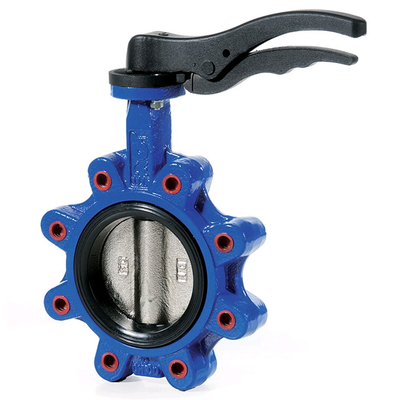

Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts

Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts

  • Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts
  • Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts
  • Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts
Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC111
Certification: ISO9001,.CE,SGS
Model Number: 111
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Part Name: Wafer Butterfly Valve Application: Water Treatment
Pressure: Medium Pressure Structure: Butterfly
Standard: ANSI BS DIN JIS Temperature Of Media: Normal Temperature
High Light:

valve parts casting

,

stainless steel sand casting

Dn200 PN10 16 Cast Ductile Iron Wafer Butterfly Valve Body for Valve Parts

Product Details



Material list
Part name
Materials
Body
Cast iron: ASTM A126CL.B, DIN1691 GG25, EN 1561 EN-GIL-200
Ductile iron: ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-200
Stainless steel: ASTM A351 CF8, CF8M, CF3
Carbon steel: ASTM A216 WCB
Stem
Stainless steel: ASTM A276 type 316, 400, ASTM A582 type 416
Taper pin
Stainless steel: ASTM A276 type 304, type316, EN 14501
Seat
NBR, EPDM, Neoprene, viton
Disc
Ductile cast iron (nickel plated): ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10
O-ring
NBR,EPDM,Neoprene,Viton
Bushing
PIPE Nylon lubricated bronze
Key
Carbon steel
Test
Working pressure
PN10, PN16, PN25
Shell pressure
1.5Mpa, 2.4Mpa, 27.5Mpa
Seat pressure
1.1Mpa, 1.76Mpa, 37.5Mpa



Features

1.Small in size and light in weight. Easy installation and maintenance.lt can be mounted wherever need.
2.Simple and compact construction, quick 90 degrees on-off
operation.
3.Minimized operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life. Standing the test of tens of thousands opening/closing operations.
6.Bubbles tight sealing with no leakage under the pressure test.
7.Wide selection of material applicable for various medium.

Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts 0

Valve type
Wafer type
Connection Type
Wafer end
Actuator
Worm Gear
PN
10/16P
Body material
Ductile Iron
DN
100mm
Disc material
Ductile Iron
Color
Blue/Customized
Stem material
45#
Suitable temeperature
10~150℃
Sealing material
EPR
MOQ
1 Piece
Pin
With Pin
Suitable medium
water/Oil/Gas
Bolt
Stainless Steel
Port
Ningbo/Qingdao/Shanghai


Main Products

Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards. We have passed the ISO 9001, WRAS, national TS permit and CE certification.



Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 35-50 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but customers need pay the cost of freight.
