Place of Origin: | Ningbo,China |
Brand Name: | NC810 |
Certification: | ISO9001,CE,SGS |
Model Number: | 810 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $1-50 |
Packaging Details: | Crate |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 60,000 pcs per month |
Application: | Post Tension/ Prestressing Construction | Type: | Round |
---|---|---|---|
Hardness: | Wedge:78-85HRA, Anchor Head: 25-36HRC | Material: | Wedge: 20CrMnTi, Anchor Head: 40CrMnTi Steel |
Capacity: | 1860Mpa | Wedge Type: | 2 Pieces/set |
Cable Diameter: | 15.24mm/12.7mm | ||
High Light: | post tension accessories,prestressed anchorage |

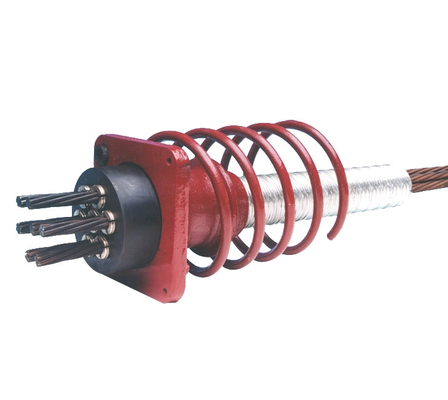

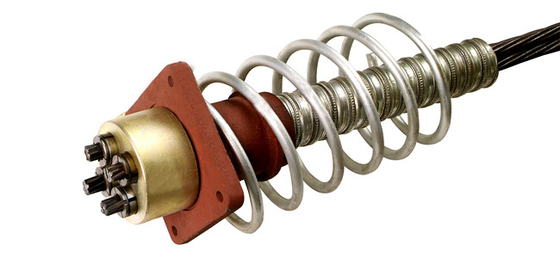

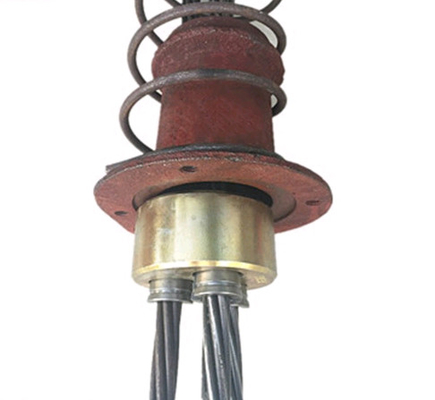

Post Tensioning Prestressing Round Anchorage for Building and Bridge Concrete
Description
The anchoring device used in prestressed concrete, is in post-tensioned structure or component, in order to keep the tendons of tension and passes it to the interior of the concrete anchor tool, also known as Flat anchor head.
Anchor Grips Features:
1. 3.8mm, 4mm, 5mm, 7mm, 9mm, 15mm and so on
2. Lock for steel wire for precast concrete line
3. Good price, durable quality, recycle use
Anchor Grips Usage:
This kind of anchorage is used in pre-tensile production, used for different size of steel wire in precast hollow core slab factory, beam and lintel making factory and so on.
Applications:
1. Used in pre-tension or post-tension for concrete constructions as building materials
2. Used in the upper plates of bridges
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
4. Used for multi-storey industrial/commerial/residential buildings, stadiums, coal mines and etc
Specification
Product Name | Prestress Anchorage |
Model number | VLM13(15) |
Material | Wedge: 20CrMnTi, Anchor head: 40CrMnTi steel, Anchor bearing plate: HT200 |
Hardness | Wedge:78-85HRA, Anchor head: 25-36HRC |
Steel strand's diameter | 12.7mm/15.2mm |
Wedge type | 2 Pieces/set |
Certificate | ISO, SGS |
Packing | Free fumigation wooden case |
Produce Standard | Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to GB/T9439-88 |
Full set including | anchor head, wedge, bearing plate, spiral reinforcement. |
Test | Metallographic Analysis and Testing of magnetic particle flaw detection |
Contact Person: Mr. Paul
Tel: +86-15067447509
Fax: 86-574-88923602
